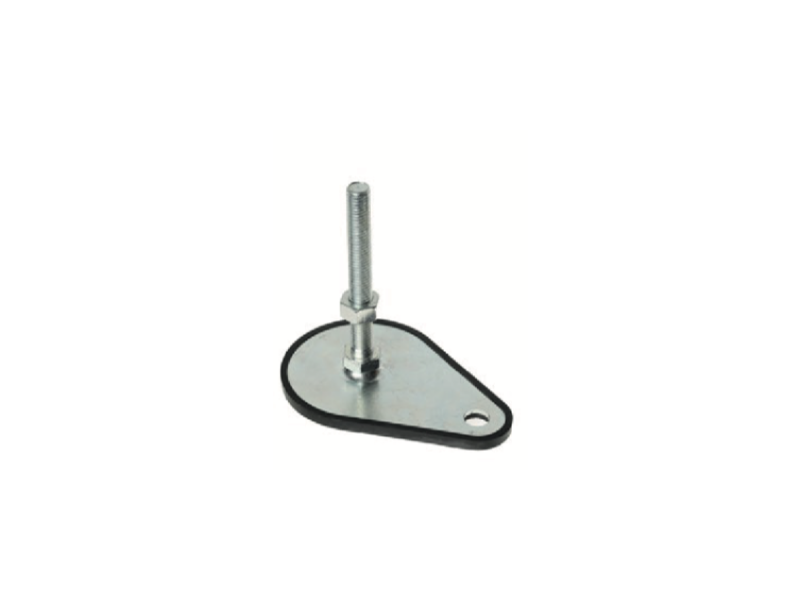

TYPE-BESL
RUBBER PARTS
Material: NBR
Hardness: 80 Shore A
Hardness Tolerance: ± 5 Shore A
METAL PARTS
Material: DIN EN 10111-98
Coating: DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coated
| Ref Nr.D | D | m | L | hL | oad kg/pcs |
| type-BESL | mm | mm | mm | kg |
| BESL80 / 1210 | 80 | M12 | 100 | 19 | 1000 |
| BESL80 / 1610 | 80 | M16 | 100 | 19 | 1000 |
| BESL80 / 2015 | 80 | M20 | 150 | 19 | 1000 |
