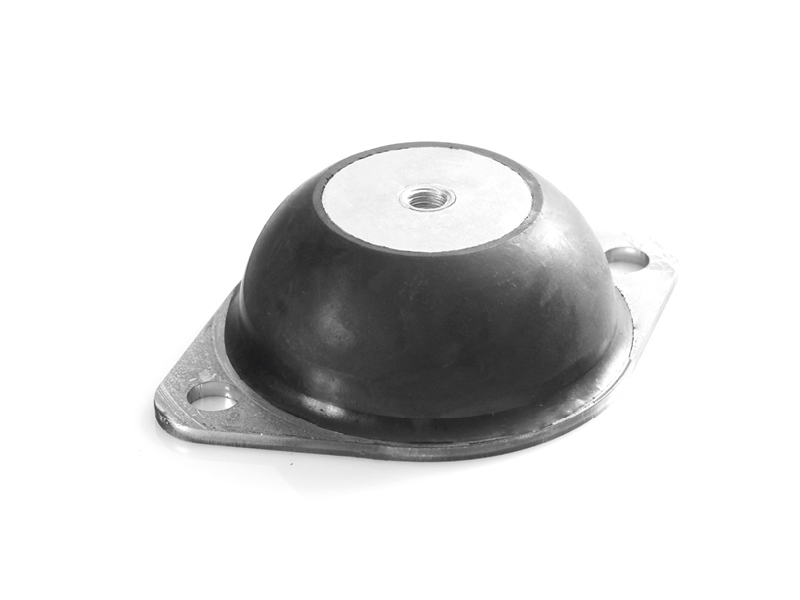

TYPE-STM
RUBBER PARTS
Material : NR - SBR - CR - EPDM
Hardness : 45 - 57 - 70 Shore A
Hardness Tolerance : ± 5 Shore A
METAL PARTS
Material : DIN EN 10111-98
Coating : DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coated
| Ref. Nr. | DØ | B | A | H | l | d | m |
| type-STM | mm | mm | mm | mm | mm | mm | mm |
| STM25 | 33 | 66 | 85 | 25 | 11 | 8 | M8 |
| STM100 | 53 | 110 | 136 | 40 | 15 | 11,5 | M10 |
