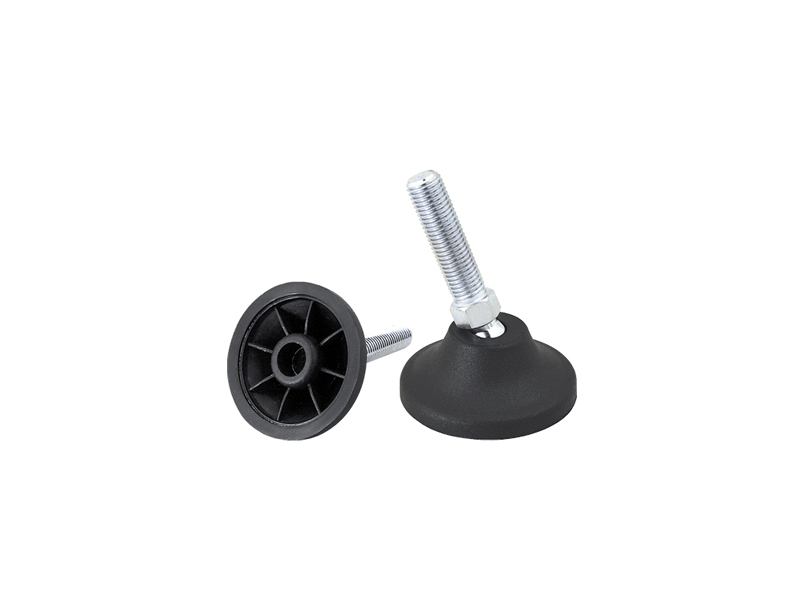

TYPE-BEP81
KAUÇUK PARÇALAR
Malzeme : Reinforced Polyamide
METAL PARÇALAR
Malzeme : DIN EN 10111-98
Kaplama : Chrome Plated
| Ref. Nr. | D | M | L | L1 | H | Load kg/pcs |
| type-BEP81 | mm | metric | mm | mm | mm | kg |
| BEP81 0845 | 81 | M8 | 75 | 45 | 30 | 600 |
| BEP81 0860 | 81 | M8 | 90 | 60 | 30 | 600 |
| BEP81 1045 | 81 | M10 | 75 | 45 | 30 | 600 |
| BEP81 1060 | 81 | M10 | 90 | 60 | 30 | 600 |
| BEP81 1075 | 81 | M10 | 105 | 75 | 30 | 600 |
| BEP81 1090 | 81 | M10 | 120 | 90 | 30 | 600 |
| BEP81 1012 | 81 | M10 | 150 | 120 | 30 | 600 |
| BEP81 1245 | 81 | M12 | 75 | 45 | 30 | 600 |
| BEP81 1260 | 81 | M12 | 90 | 60 | 30 | 600 |
| BEP81 1275 | 81 | M12 | 105 | 75 | 30 | 600 |
| BEP81 1290 | 81 | M12 | 120 | 90 | 30 | 600 |
| BEP81 1212 | 81 | M12 | 150 | 120 | 30 | 600 |
